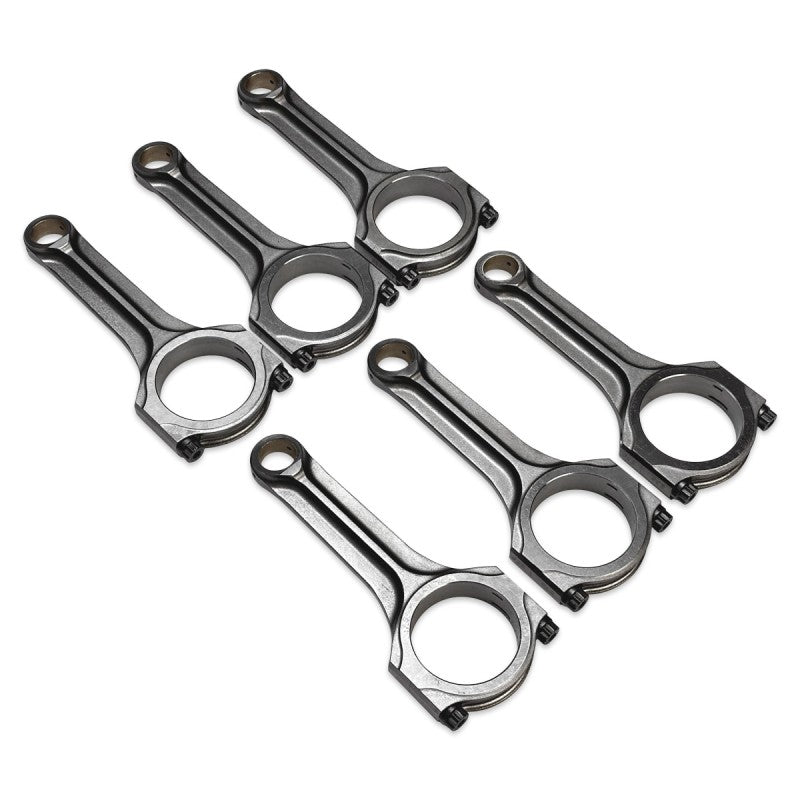

034 Motorsports Pauter 4340 Chromoly Cross-Beam Connecting Rod Set Audi 3.0T 2009-2018

he 034 Motorsports PAU-AUD-220-588-1530FD is a high-performance cross-beam connecting rod set specifically engineered for the Audi EA837 3.0T supercharged engines produced between 2009 and 2018. These rods are a critical upgrade for those looking to enhance engine performance significantly.

Material and Design

Constructed from 4340 Chromoly steel, the PAU-AUD-220-588-1530FD rods feature a unique cross-beam design that enhances strength and reliability. This material choice ensures durability under high-stress conditions, making it suitable for applications where increased power levels and higher RPMs are the norm.

Specifications

• Length: 153.01mm
• Wrist Pin Diameter: 22mm
• Torque Rating: 200 ft-lb per rod
• Heat-Treated to Rockwell C36
• Full Coverage Shot Peened for enhanced durability
• CNC Machined to precise tolerances for optimal fit
• Compatible with OEM rod bearings
• Includes ARP 2000 bolts rated at 220,000 PSI tensile strength
• Features aluminum-bronze wrist pin bushings

Installation Notes

The rods come as a set of six, balanced end-to-end, and are ready for installation. They are designed to accept OEM rod bearings and utilize a tapered small end to seamlessly work with OE pistons. This makes the installation process straightforward for those familiar with engine assembly.
